FRAM™ window systems can turn any place into a cozy, stylish, and ergonomic space. To implement the broad scope of individual ideas, our experts use REHAU profile systems which are among the most popular choices worldwide.
FRAM ™, in cooperation with REHAU, has already executed dozens of impressive major projects and satisfied hundreds thousands of individual requests. Two leaders joined forces to create innovative solutions that have no equal.

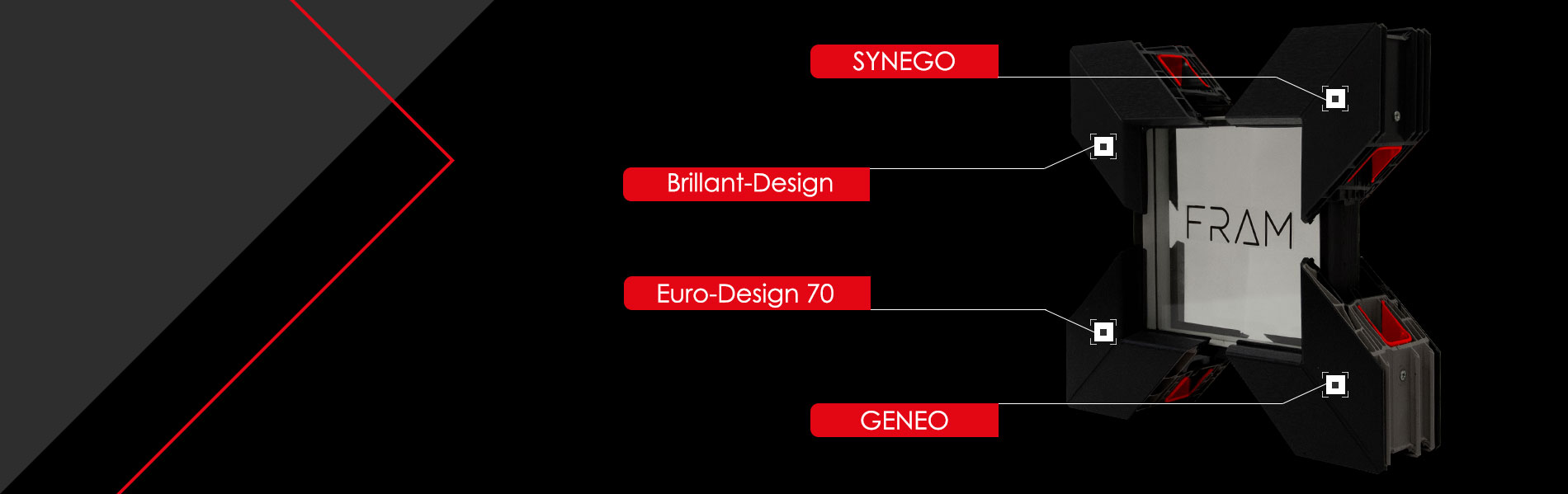

TYPES OF PROFILE SYSTEMS
- Rehau GENEO
- Rehau SYNEGO MD
- Rehau Brillant-Design
- Rehau Euro-Design 70
- Rehau Euro-Design 60
TYPES OF PROFILE SYSTEMS
Rehau GENEO is an innovative system based on the fiber composite reinforced material RAU-FIPRO. Being very lightweight, it is characterized by impressive strength and unique exterior and performance features. The thermal conductivity of the material is similar to that of a thick brick wall, whereas the Uw ≤0,6 m²K/W. It detains up to 47 Db of outside noise, thus providing an exceptional level of noise and heat insulation. GENEO is the No 1 choice for the “passive house” homeowners.
TECHNICAL CHARACTERISTICS
| Constructive depth: | 86 mm |
| No of chambers: | 6 chambers |
|
Max. glazing thickness: |
Up to 53 mm |
| Coefficient of heat transfer resistance: | Uw ≤0,6 m²K/W /Ug ≤0,5 m²K/W |
| Acoustic insulation: | up to 47 Db without reinforcement |
| Air permeability: | Class 4 as per EN 12207 |
| Water resistance: | Up to Class 9A as per EN 12208 |
| No of seals: | 3 RAU PREN seals |
REHAU SYNEGO is a profile system with unique characteristics that protects your house from external factors and can act as a real attraction of your apartment. This is the most multifunctional system defined by improved geometry and efficiency that provide outstanding levels of noise and heat insulation. The exquisitely designed six-chamber SYNEGO system was created with a focus on maximum comfort and quality which rightfully gained it the reputation of the “quietest” one.
TECHNICAL CHARACTERISTICS
|
Constructive depth: |
80 mm |
|
No of chambers: |
7- chamber frame, 6-chamber sash |
|
Max. glazing thickness: |
up to 51 mm |
|
Coefficient of heat transfer resistance: |
Uw ≤0,7 m²K/W /Ug ≤0,5 m²K/W |
|
Acoustic insulation: |
up to Rw,P = 47 Db |
|
Air permeability: |
Class 4 as per EN 12207 |
|
Water resistance: |
Class 9A as per EN 12208 |
|
No of seals: |
3 seals |
The name of this profile speaks for itself as it offers you both the premium class product and the combination of exclusive design with advanced technology. The product has a very high coefficient of heat transfer resistance which makes it perfect for climates with drastic changes in temperature and buildings with minimized heating power consumption. The Rehau BRILLIANT windows and doors are especially popular with the most demanding customers who highly value the German quality and exquisite design with elegantly rounded surfaces.
TECHNICAL CHARACTERISTICS
|
Constructive depth: |
70-80 mm |
|
No of chambers: |
5-6 chambers |
|
Max. glazing thickness: |
up to 41 mm |
|
Coefficient of heat transfer resistance: |
Uw ≤1,0 m²K/W |
|
Acoustic insulation: |
up to Rw,P = 43 Db |
|
Air permeability: |
Class 4 as per EN 12207 |
|
Water resistance: |
up to Class 9A as per EN 12208 |
|
No of seals: |
2 seals |
Rehau Euro-Desing 70 is a German profile with sophisticated design and high noise and heat insulation features which make them ideally suited for our climate conditions. These characteristics are achieved through the height and depth of the profile, the number of chambers, and the shapes of some elements. If you value the atmosphere of light, warmth, and coziness, the Rehau Euro-Design 70 system will be the perfect solution to spend your money on. Windows and doors of this system allow their owners to take pride in the visual elegance and provide reliable protection against cold temperatures.
TECHNICAL CHARACTERISTICS
|
Constructive depth: |
70 mm |
|
No of chambers: |
5 chambers |
|
Max. glazing thickness: |
up to 41 mm |
|
Coefficient of heat transfer resistance: |
Uw ≤1,0 m²K/W |
|
Acoustic insulation: |
up to Rw,P = 43 Db |
|
Air permeability: |
Class 4 as per EN 12207 |
|
Water resistance: |
up to Class 9A as per EN 12208 |
|
No of seals: |
2 seals |
NON-STANDARD UNITS
TRAPEZOIDAL
TRIANGULAR
ROUND
ARCHED
POLYGONAL
SLIDING
ADVANTAGES OF THE REHAU PROFILE
EXPERIENCE
Geman company REHAU with its headquarters in Erlanger has been manufacturing innovative door and window systems since 1958.
QUALITY
The profiles we use are delivered straight from the EU production sites and have a quality guarantee which certifies the initial operational characteristics of the product.
SUSTAINABILITY
The eco-friendly materials do not emit harmful substances, which has been proven by Ukrainian and European certificates.
ACOUSTIC INSULATION
The REHAU profile systems are known for their high-level noise insulation characteristics that help us make your home calm and cozy.
THERMAL INSULATION
Excellent thermal insulation performance is an integral business card of the Rehau company, which has been a leader in the field of innovation for more than half a century.
RELIABILITY
Units produced on the REAHU profiles are exclusively manufactured at our authorized facilities that regularly go through a thorough audit by REHAU.
LAMINATION
Get hold of a wider choice of remarkable solutions for your projects to satisfy your needs and preferences.
For profile lamination, we use high-quality Renolit films.
PAINTING
This technique will make your boldest designer ideas come true. The RAL Design professional color design scheme will help you realize any fantasy and implement the most dazzling architectural project.

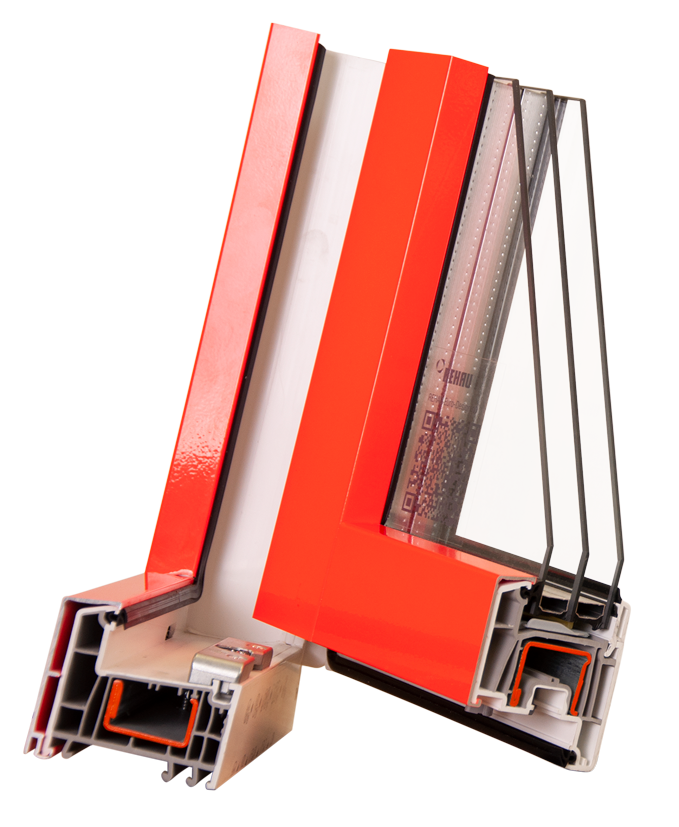

ALUMINUM SKINS
The smart mechanism along with exclusive design bring aesthetic pleasure.
Units with the external aluminum skins combine the energy-saving properties of plastic with the visual perfection and beauty of aluminum. Together, these qualities can satisfy the most demanding customers. The skins allow you to place the necessary architectural accents and use PVC structures in the process of modern aluminum facade construction. The patented FRAM™ aluminum skins enable us to create truly unique and functional solutions which are the best choice for elite and commercial property glazing.
ADVANTAGES OF ALUMINUM SKINS
- Premium exterior look
- Additional protection against external factors
- Freedom of choice with RAL color
AUTHORIZED REHAU PARTNER
FRAM ™ is the window market leader with ample possibilities that offer the clients a wide range of high-quality services provided by an experienced professional team.
PRODUCTION FACILITIES
Our production employs cutting-edge advanced technological equipment which allows us to manufacture high-quality products compliant with the highest international standards. All production elements are located at our private premises.
WARRANTY OBLIGATIONS
The customers are granted a FRAM™ warranty for each product and service; there is also the possibility to use our warranty and post-warranty maintenance services.

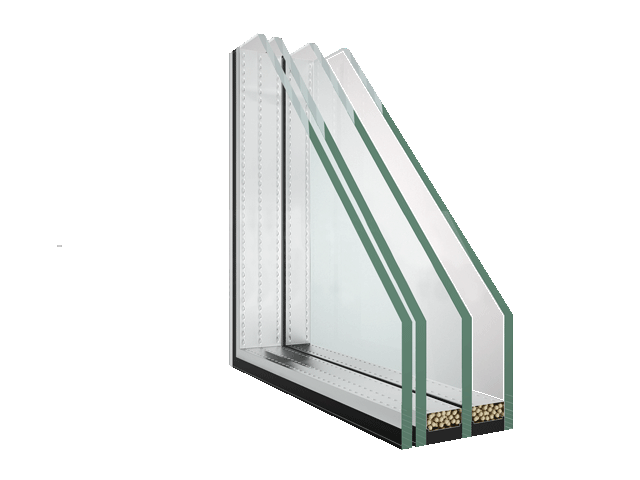

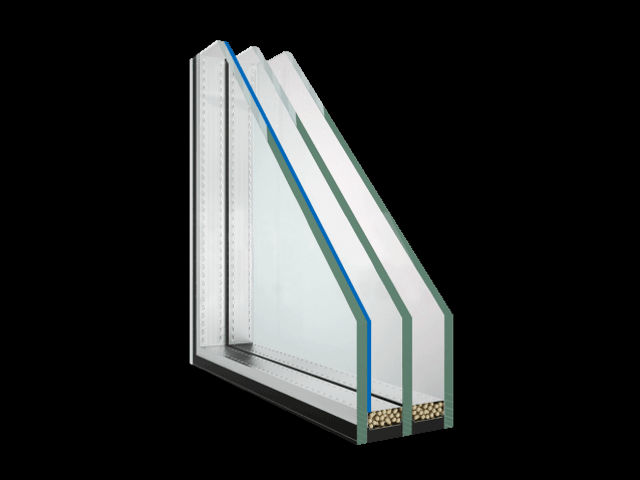

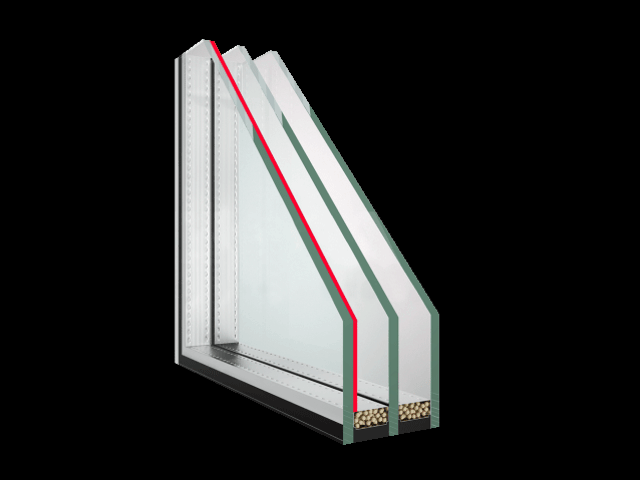

GLASS UNITS
The quality of glass units plays a crucial role in the outcome.
Apart from numerous essential quality characteristics, modern glass units must fascinate with their crystal clarity so you can enjoy the views. FRAM manufactures a wide range of glass units:
- insulated glass
- shockproof
- armored
- energy-saving
- tempered
- acoustic
- with enameled glass
- with decorative film
- insulated glass
- shockproof
- armored
- energy-saving
- tempered
- acoustic
- with enameled glass
- with decorative film

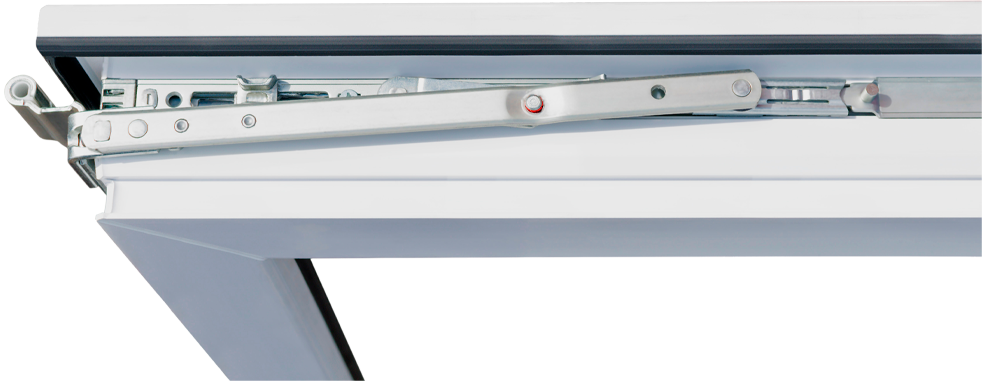

SPECIAL ATTENTION TO THE HARDWARE
SECURITY LEVELS
Vandal-proof hardware for the PVC units operates on the same principle as common closing mechanisms. With the turn of a handle, the pins smoothly enter the frame locking bars and lock the sash. The only difference is the reliability of the connection. The vandal-proof f hardware has more locking points in comparison to standard designs, i.e., the anti-vandal sets have more pins on each side of the sash. The top pin has a “hood” and is securely held in the locking mechanism. This is due to the shape that this system got its name – the “mushroom” pin. The apertures in the locking frames are designed as one long notch in the window plate. Finally, instead of common steal, more durable materials are used, e.g., doped alloys, and even titanium.

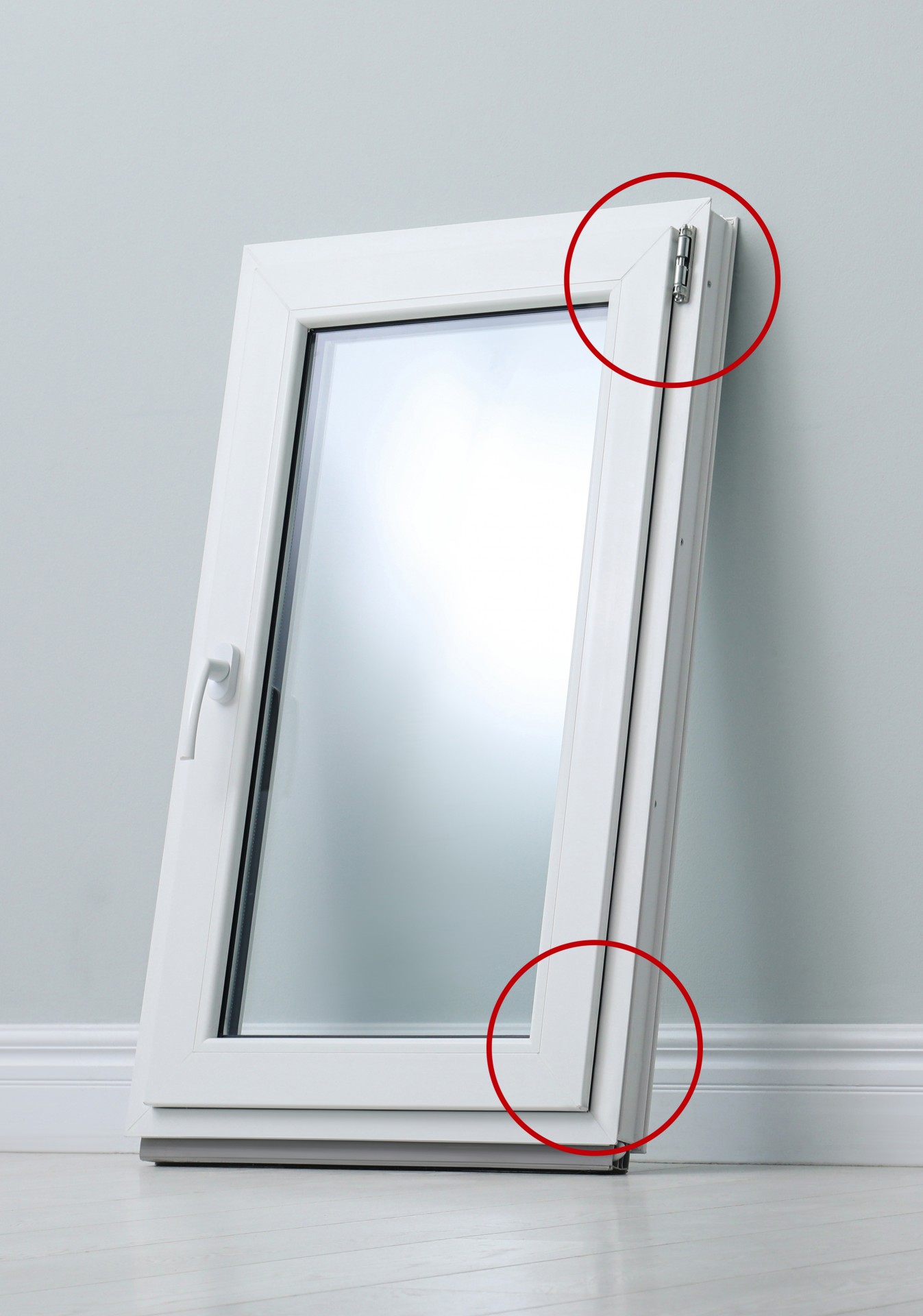

HARDWARE WITH HIDDEN HINGES
Units with hidden hinges are the most popular among our customers. In contrast to classic external hardware, the hidden hinges are located inside the unit frame increasing the security level, airtightness, and thermal insulation. This approach helps you create a stylish interior without the risk of degrading the functional characteristics of a quality PVC window.

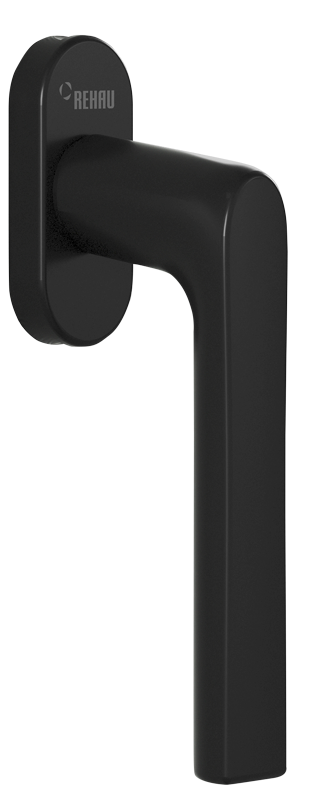

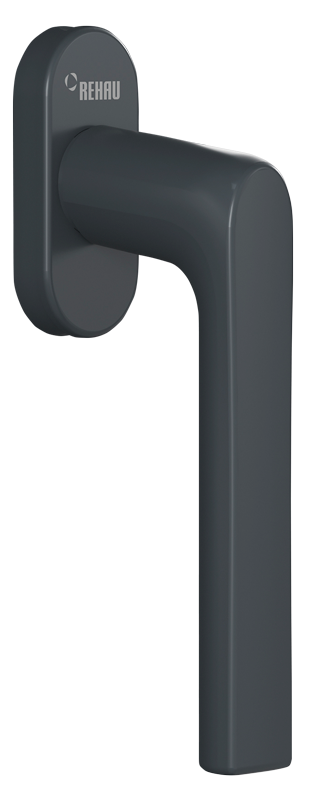

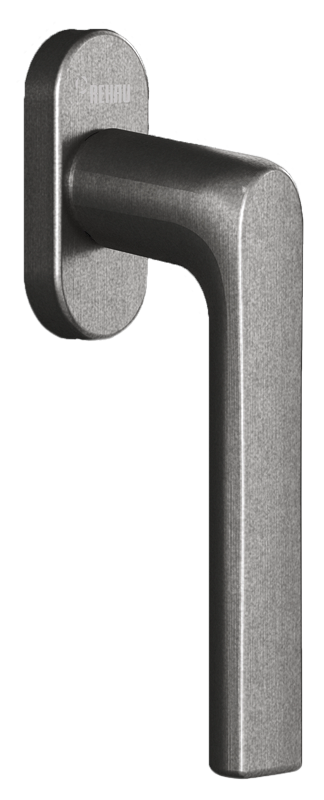

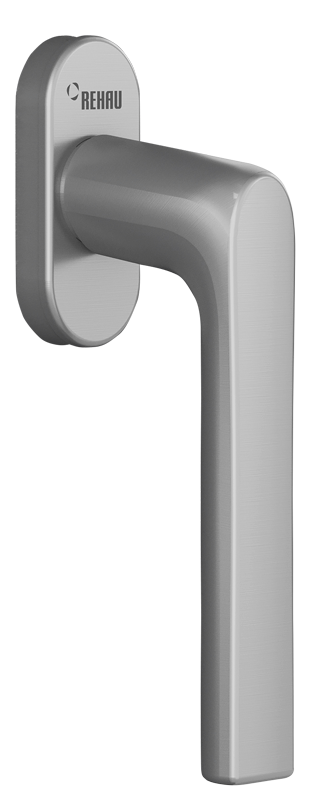

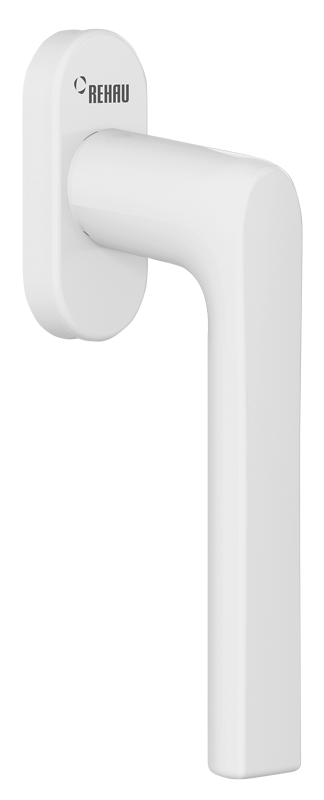

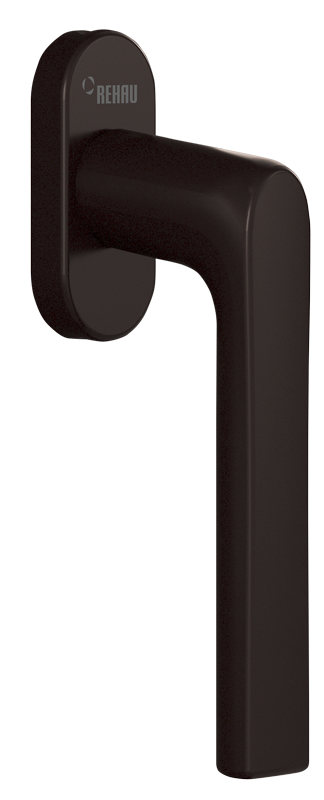

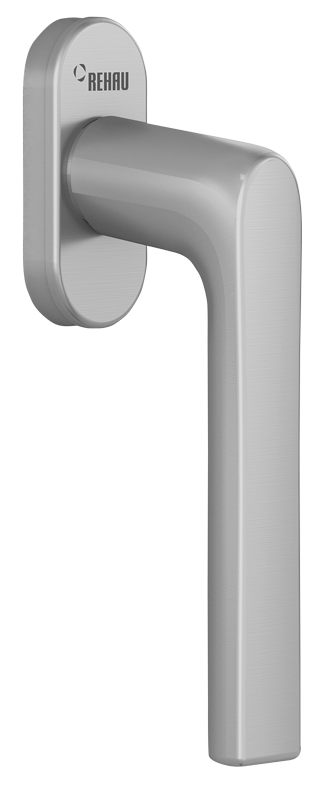

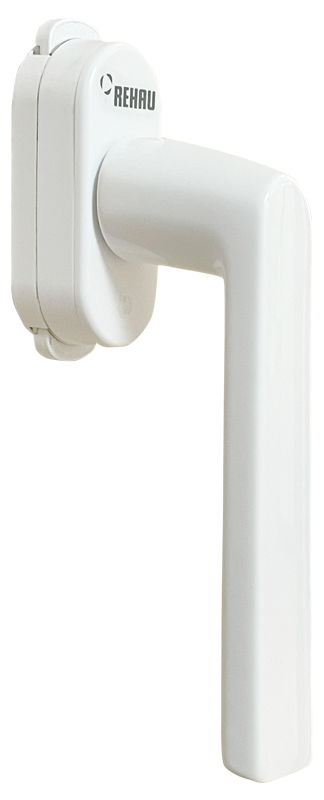

WINDOW HANDLES
The handle design emphasizes the style and quality of modern windows.
Handles do not only serve as a window decoration but they are also an important functional element. We strongly recommend using exclusively REHAU authentic handles.
The sleek exterior of a PVC units harbors a variety of advanced engineering developments. Each of them turns a humble window into a reliable system protecting your home from cold, dirt, and external noise.
